LEGAL NOTICE
The .dxf files downloadable from this page are the exclusive property of Brian Lamb.
Commercial and/or for profit use is strictly prohibited without written permission from
Brian Lamb. If you are interested in acquiring legal rights to this invention you must
contact Brian via e-mail
<blamb11@cox.net>
NOW BACK TO OUR REGULARLY SCHEDULED PROGRAMMING

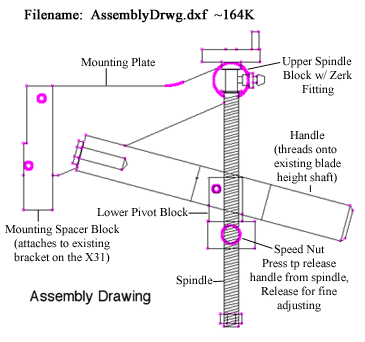

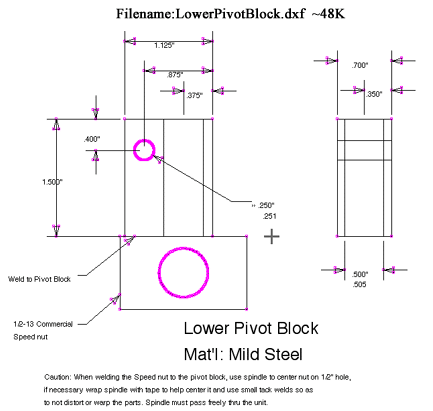

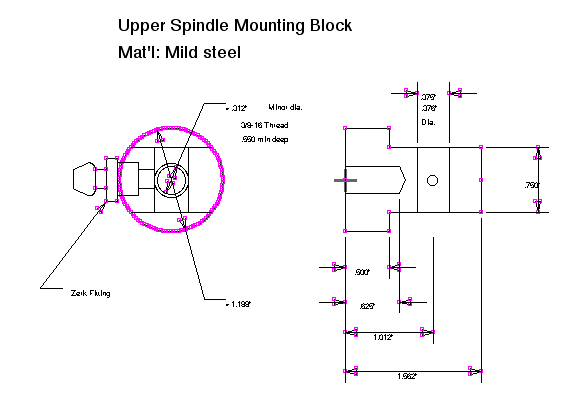

There are six (6) files in .dxf format you’ll want to download. Double Click on an
image below.
Depending on your web browser either
1. a Save File dialogue box will open with the filename you clicked on. Select the directory/
file folder into which you want the file saved and click "Save"
or
2. a new page will open that'll look something like this:
0
SECTION
2
HEADER
9
$ACADVER
1
AC1009
9
$INSBASE
10
in which case save the information using the Save As file method, selecting the directory/file folder
where you want to save the file and then clicking "Save"
If, for any reason, you can't download a file or any of the files then e-mail me specifying which .dxf
file you want.. Then use the Back Arrow in your browser to return to this page.
\
